Description
Please Note.
This is the upgraded V3 model of this tried and tested design.
Balance charge up to 6 cell LiPo.
Specifications:
Imax B6 V3:
Input voltage DC：11-18V
Charge current 0.1-6.0A
Discharge current0.1-2.0A
Charge power Max.80W
Discharge power Max.5W
Balance current 200mA

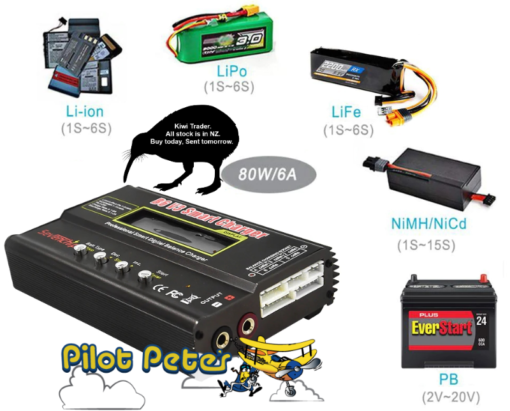

Charging Capability Li.Po, LiHv, Li.lon, Li.Fe：1-6cells
NiCd，NiMH：1-15cells
Pb battery voltage 2-24V
Temperature sensor port Yes
Built-in balance Yes
Dimensions 135*86*32mm (L*W*H)

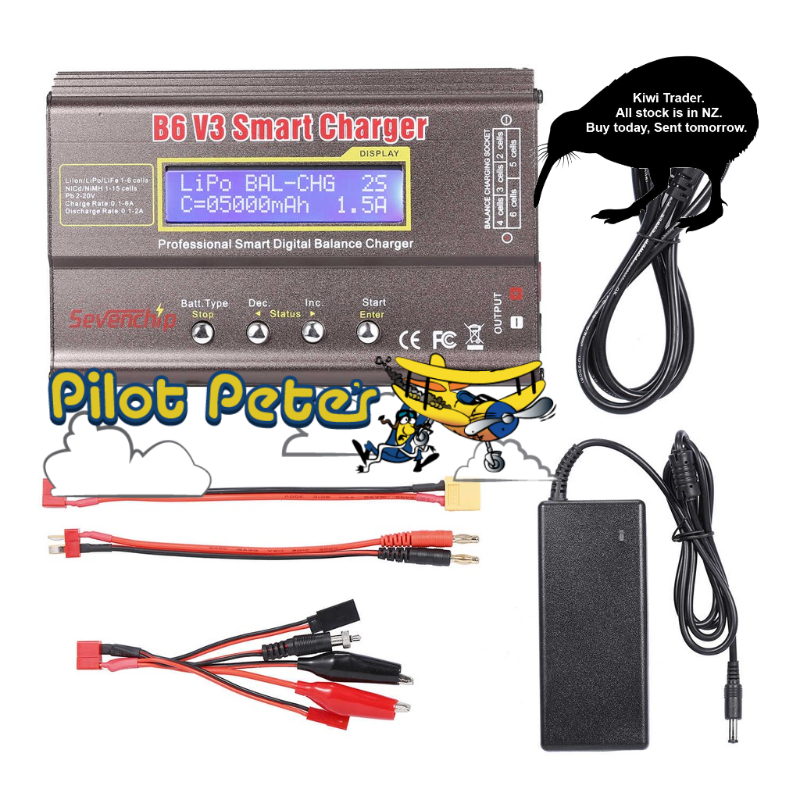

AC POWER 12v 5A:
- This is a high-quality digital power supply.
- Short circuit protection on all outputs
- Over power protection
- 100% Burn-In tested at full load
- Rated for 60,000 hours use
Please Note.
Plug in the adapter first then plug in the charger.
